Opti Pintle Set (Optiparts)

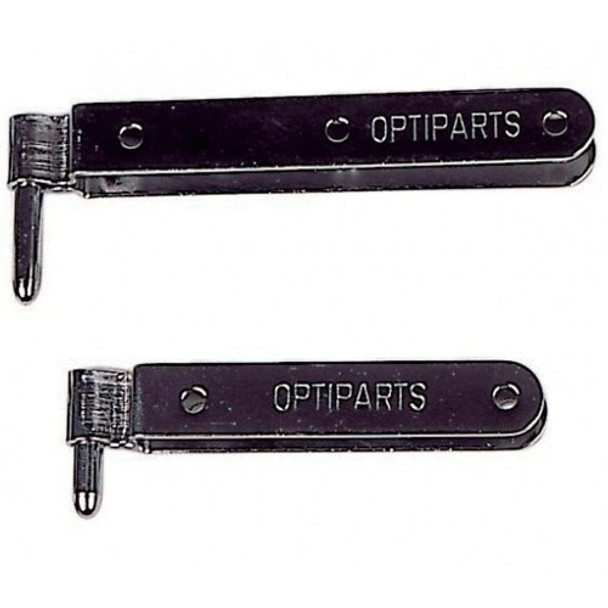

The Optimist pintle set from Optiparts can be used with most Opti rudders but is specifically designed for replacing Optiparts pintles. The fittings are stainless and feature a 6mm pin diameter. The set includes both upper and lower pintles as well as fasteners.  Optiparts Part # EX1160

Measurements:

Upper Pintle:

• 3 1/8" Long (total bracket length)
• 2 1/2" between holes
• 1/2" between front of pintle to first hole

Lower Pintle:

• 4" Long
• 1 5/8" between holes
• 1/2" between front of pintle to first hole
